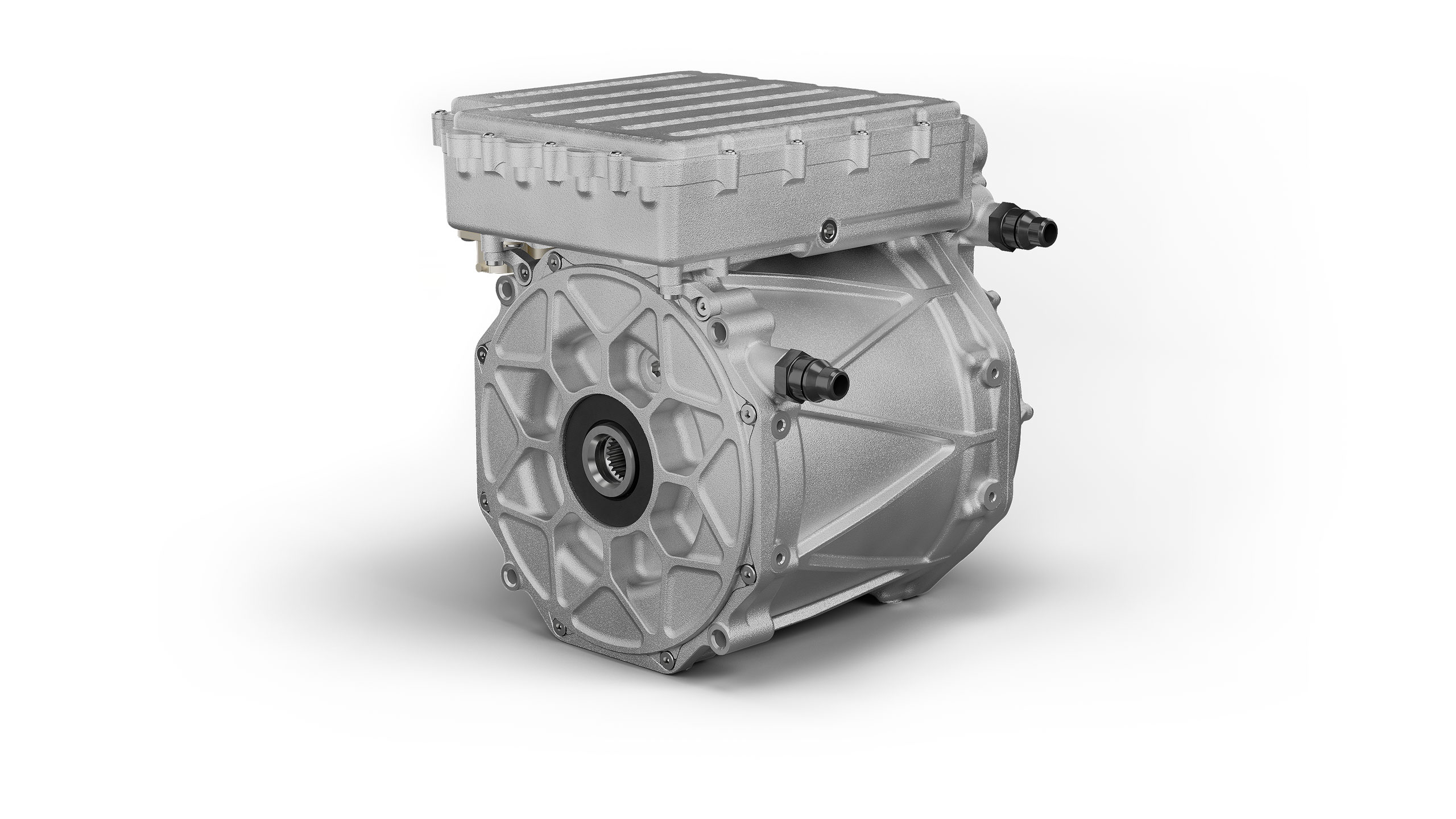

Hyperdrives One
- Integrated electric drive unit
- Stand-alone e-motor
Designed to set a new benchmark in performance-to-cost. Delivers excellent peak and continuous power for virtually all applications. Available as an integrated system with SiC inverter and as a stand-alone motor.
Features and applications
More with less.
Hyperdrives One delivers second to none power density to cost and adapts to any rotor topology. Available as a versatile integrated drive or stand-alone motor for automotive, marine, and industrial applications.
Power. Continuous.
Hollow-conductor cooled radial flux pin architecture delivers 3× improvement in continuous currents (> 75 ARMS/mm²) and power-density
Integrated system
Available as integrated power unit with high power dense three-phase SiC inverter and one shared cooling loop or stand-alone motor only
Rotor agnostic
Distributed winding layout allows for use of all rotor topologies (IPM as standard) and enable excellent NVH through low frequencies
Highly versatile
Best-in-class performance-to-cost and versatile as a motor or generator unit across automotive, marine and industry applications
Exemplary specifications
Power in numbers.
Interior permanent magnet machine (IPM) | ||
| Integrated system | Stand-alone | |
| Size & weight | ||
| weight | 36.1 kg | 29.1 kg |
| length | 283.3 mm | 246.5 mm |
| height | 289.0 mm | 218.0 mm |
| Peak power | ||
| peak power @ 800 V | 350 kW | 530 kW |
| peak power density | 9.7 kW/kg | 18.2 kW/kg |
| Continuous power | ||
| continuous power @ 800 V | 260 kW | 260 kW |
| continuous power density | 7.2 kW/kg | 8.9 kW/kg |
| Torque & speed | ||
| maximum torque | 330 Nm | 460 Nm |
| maximum speed | 17,000 rpm | 17,000 rpm |
| Download data sheet (PDF) | ||
Tailoring
One size rarely fits all.
If you are interested in a specification that goes beyond the examples shown above, we offer tailored electric drive systems to meet your specific application and industry needs. Deep process and technology know-how combined with our leading-edge proprietary FEM software tools allow us to review and transform your spec to a reliable product study in a matter of days.
Email us for further information and inquiries.
info@hyperdrives.com Email us for further information and inquiries.
